公制精抛光双开口扳手
采用铬钒钢材质
表面镀铬, 镜抛处理

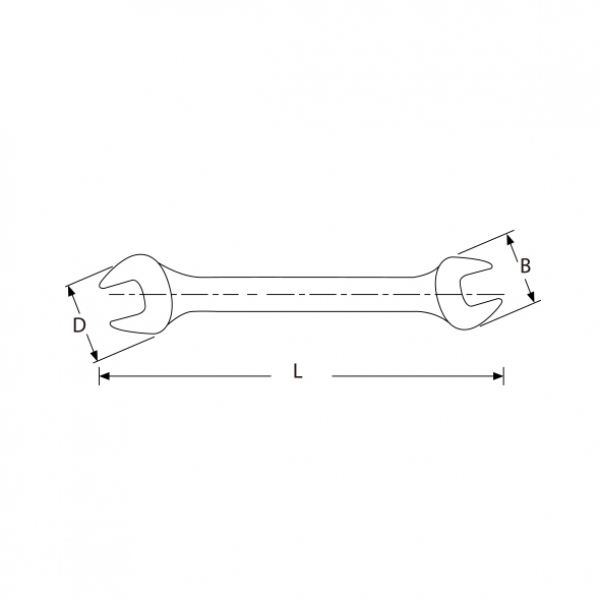

| 货号 | 规格(mm) | L(mm) | B(mm) | D(mm) | 包装数量 |
|---|
| S018105 | 5.5x7 | 124 | 14.4 | 17.3 | 12 |
| S018106 | 6x7 | 124 | 14.4 | 17.3 | 12 |
| S018107 | 7x9 | 138 | 17.7 | 19.8 | 12 |
| S018108 | 8x10 | 138 | 17.7 | 19.8 | 12 |
| S018109 | 9×11 | 150 | 20.1 | 22.2 | 12 |
| S018110 | 10x12 | 150 | 21.1 | 24.4 | 12 |
| S018111 | 11x13 | 164 | 24.8 | 27.8 | 12 |
| S018112 | 12x14 | 176 | 27.8 | 31.1 | 12 |
| S018113 | 13x15 | 188 | 31.1 | 34.4 | 12 |
| S018114 | 14x17 | 195 | 31.1 | 34.4 | 12 |
| S018115 | 13x16 | 188 | 31.1 | 34.4 | 12 |
| S018116 | 16x18 | 201 | 34.4 | 37.8 | 12 |
| S018117 | 17x19 | 226 | 37.8 | 41.1 | 12 |
| S018119 | 19x21 | 238 | 41.1 | 47.8 | 6 |
| S018120 | 19x22 | 238 | 41.1 | 47.8 | 6 |
| S018121 | 21x23 | 252 | 44.4 | 47.8 | 6 |
| S018122 | 22x24 | 263 | 44.4 | 47.8 | 6 |
| S018123 | 23x26 | 279 | 51.1 | 52.8 | 6 |
| S018124 | 24x27 | 279 | 49.9 | 51.9 | 6 |
| S018127 | 27x30 | 298 | 62.7 | 56.4 | 6 |
| S018130 | 30x32 | 334 | 56.4 | 66.7 | 4 |
| S018131 | 32×34 | 285 | 65 | 70 | 4 |
| S018132 | 32x36 | 285 | 64.7 | 69.5 | 4 |
| S018134 | 34x36 | 285 | 64.3 | 69.3 | 4 |
| S018135 | 30x34 | 285 | 64.7 | 69.5 | 4 |
| S018136 | 36x41 | 321 | 70 | 82 | 4 |
| S018141 | 41x46 | 371 | 82 | 92 | 4 |
