10mm Drive Deep 6pt Socket
3/8 In. drive
Chrome-Vanadium steel
Chrome plated,mirror polished

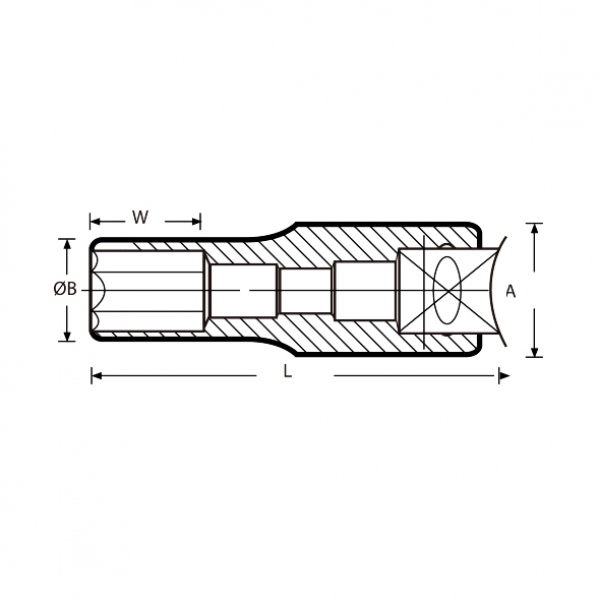

Item No. | Specification(mm) | L*W(mm) | Diameter A(mm) | Diameter B(mm) | Qty/CTN |
---|---|---|---|---|---|
S010708 | 8 | 45.5X12 | 16.7 | 11.5 | 12 |
S010709 | 9 | 45.5X14 | 16.7 | 13 | 12 |
S010710 | 10 | 45.5X15 | 16.7 | 14.1 | 12 |
S010711 | 11 | 45.5X17 | 16.7 | 15.7 | 12 |
S010712 | 12 | 45.5X18 | 16.6 | 17.8 | 12 |
S010713 | 13 | 45.5X18 | 17 | 18.9 | 12 |
S010714 | 14 | 50X18 | 17 | 19.8 | 12 |
S010715 | 15 | 53X20 | 18.8 | 20.8 | 12 |
S010716 | 16 | 53X20 | 19 | 21.9 | 12 |
S010717 | 17 | 53X20 | 19.6 | 23.7 | 12 |
S010718 | 18 | 56X20 | 22.1 | 25.7 | 12 |
S010719 | 19 | 56X20 | 21.8 | 25.8 | 12 |
S010720 | 20 | 63.5X22 | 23.9 | 27.9 | 12 |
S010721 | 21 | 63.5X22 | 24.1 | 27.7 | 12 |
S010722 | 22 | 63.5x22 | 25.8 | 29.6 | 12 |
